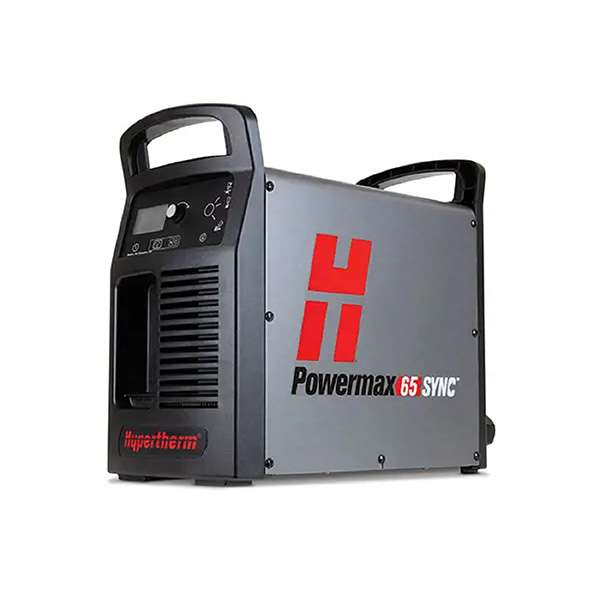

Powermax 65 SYNC
A dramatically simplified consumable platform combined with advanced torch communication for automated setup makes Hypertherm’s new Powermax65 SYNC® plasma systems the smarter choice for any cutting or gouging application.
Easy to use
- Easy to identify single-piece cartridge consumables are color coded by process to eliminate parts mix-up and simplify consumable inventory management.
- New SmartSYNC™ torches with the Hypertherm cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
- End of life detection lets the operator know when it’s time to change the cartridge.
- Less operator fatigue when using hand torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material.
Minimize operation costs
- Simplified operation minimizes downtime, troubleshooting, waste and training time
- Advanced cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables.
- Access cartridge data for performance tracking, analyzing usage patterns.
Maximize performance
- Tackle a wide range of jobs with easily interchangeable torch styles and application-specific Hypertherm cartridge consumables for various types of cutting and gouging
- Reduce training time with simplified set up and consistent performance.
- Time-saving torch controls allow the operator to adjust the amperage on the fly and change consumables and applications without returning to the power supply.
Industry-leading reliability
- SmartSYNC™ torches are engineered for rugged, industrial environments
- SpringStart™ technology ensures consistent starting and a more reliable torch.
- Industry-leading reliability reduces production downtime.
General specifications
| Input voltages | 200–480 V, 1-PH, 50/60 Hz 200–600 V, 3-PH, 50/60 Hz |
|---|---|
| Kilowatt output | 9 kW |
| Input current | 200/208/240/480 V, 1-PH 52/50/44/22 A @ 9 kW 200/208/240/480/600 V, 3-PH 32/31/27/13/13 A @ 9 kW |
| Output current | 20–65 A |
| Rated output voltage | 139 VDC |
| Duty cycle @ 104° F | 50% @ 65 A, 230–600 V, 1/3-PH 40% @ 65 A, 200–208 V, 1/3-PH 100% @ 46 A, 230–600 V, 1/3-PH |
| Open circuit voltage (OCV) | 295 VDC |
| Dimensions with handles | 483 mm D; 233 mm W; 430 mm H |
| Weight w/7.6m (25') torch | 29kg (61 lbs.) |
| Gas supply | Clean, dry, oil-free air or nitrogen |
| Optimum inlet gas pressure | 7.6–8.3 bar |
| Minimum inlet gas pressure | 5.2 bar |
| Recommended inlet gas flow rate | Cutting: 210 I/min @ 5.9 bar Gouging: 210 I/min @ 4.8 bar |
| Input power cable length | 3 m |
| Power supply type | Inverter – IGBT |
| Engine drive requirement | 15 kW for full 65 A output |
| Certifications | CSA-certified for use in the Americas and Asia, except China |
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty |
