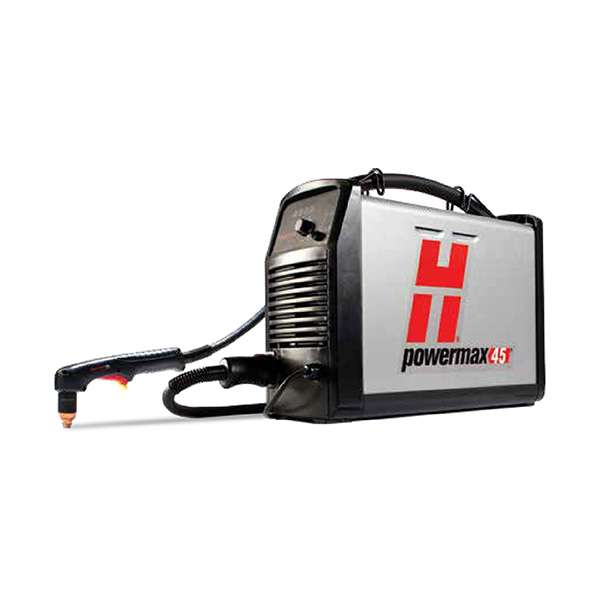

Powermax45 XP
Professional-grade plasma metal cutting and gouging system for handheld cutting 1/2″.
Easy-to-use with versatile design
- Small size and light weight provides exceptional portability for a 1/2″ rated cutting system.
- Handheld and mechanized usage with CNC interface and FastConnect™ torch connection.
- Patented drag-cutting technology makes it easy to use – even for first time operators.
Finish jobs faster
- Less edge preparation – patented consumables designs provide superior cut and gouge quality.
- Cut speeds 188% faster than oxyfuel on 1/4″ mild steel.
Rugged and reliable
- Hypertherm Certified™ reliability ensures performance in the most demanding environment.
- Powercool™ design cools internal components more effectively for long system life and improved uptime.
| Input voltages (± 10%) | 200–240 V, 1-PH, 50–60 Hz 480 V, 3-PH, 50–60 Hz | |
|---|---|---|
| Input current @ 5.95 kW | 200/230 V, 1-PH, 34/28 A 480 V, 3-PH, 9 A | |
| Output current | 20–45 A | |
| Rated output voltage | 132 VDC | |
| Duty cycle @ 104° F | 50% @ 45 A, 200–240 V, 1-PH 60% @ 41 A, 200–240 V, 1-PH 100% @ 32 A, 200–240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH | |
| Open circuit voltage (OCV) | 275 VDC | |
| Dimensions with handles | 16.75" D; 6.75" W; 13.7" H | |
| Weight (w/20′) torch | 37 lbs | |
| Gas supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate/pressure | Cutting: 360 scfh; 6 cfm @ 80 psi Gouging: 360 scfh; 6 cfm @ 60 psi | |
| Input power cable length | 10′ | |
| Power supply type | Inverter – IGBT | |
| Engine drive requirement | 8 kW for full 45 A output | |
| Certifications | CSA-certified for use in the Americas and Asia, except China. | |
| Warranty | Power supply: 3-year Torch: 1-year | |
